稳压输出SIP(0.75-1W)
稳压输出SIP(0.75-1W)

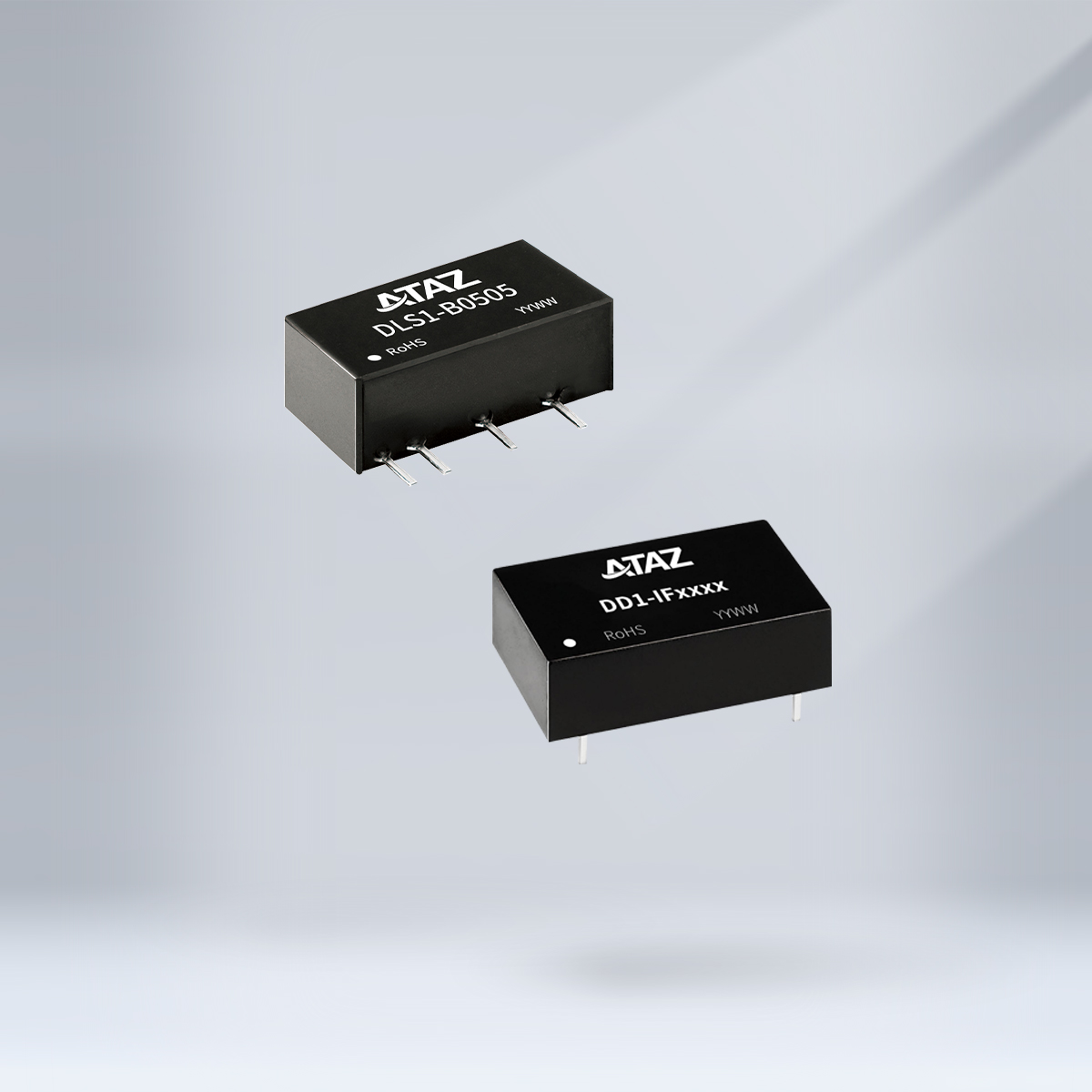

定压输入稳压输出SIP系列，是定电压输入的塑封直插隔离电源，专门针对线路板上分布式电源系统中需要一组输入与输出隔离的电源的应用场合而设计，输出电压具备稳压功能。适用于前级干扰隔离场合，地干扰消除场合，纯数字电路场合，电压隔离转换等场合。
○ 工作温度范围可满足：-40℃ to +85℃
○ 隔离电压 3000 VDC
○ 可持续短路保护
○ 符合 IEC62368, UL62368, EN62368 等标准
← →左右滑动可查看更多信息
| 系列型号 | 功率(W) | 输入电压(VDC) | 输出电压(VDC) | 输出路数 | 封装形式 | 隔离电压 | 封装尺寸(mm) | 兼容标准型号 | 资料下载 (3D/PCB封装库/原理图库) | 认证/标准 | 产品资料 | 样品申请 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DS0.75-IBxxxx | 0.75 | 5,12,24 | 3.3,5,12,15 | 1 | SIP | 1500VDC | 11.60*6.00*10.16 | IB_S-W75R3 | - | - | 规格书 | 申请+ |
| DS0.75-IB1203 | 0.75 | 12(11.4-12.6) | 3.3 | 1 | SIP | 1500VDC | 11.60*6.00*10.16 | IB1203S-W75R3 | 规格书 | 申请+ | ||
| DS0.75-IB2403 | 0.75 | 24(22.8-25.2) | 3.3 | 1 | SIP | 1500VDC | 11.60*6.00*10.16 | IB2403S-W75R3 | 规格书 | 申请+ | ||
| DS0.75-IB0503 | 0.75 | 5(4.75-5.25) | 3.3 | 1 | SIP | 3000VDC | 11.60*6.00*10.16 | IB0503S-W75R3 | 规格书 | 申请+ | ||
| DS0.75-IB1205 | 0.75 | 12(11.4-12.6) | 5 | 1 | SIP | 1500VDC | 11.60*6.00*10.16 | IB1205S-W75R3 | 规格书 | 申请+ | ||
| DS0.75-IB2405 | 0.75 | 24(22.8-25.2) | 5 | 1 | SIP | 1500VDC | 11.60*6.00*10.16 | IB2405S-W75R3 | 规格书 | 申请+ | ||
| DS0.75-IB0505 | 0.75 | 5(4.75-5.25) | 5 | 1 | SIP | 3000VDC | 11.60*6.00*10.16 | IB0505S-W75R3 | 规格书 | 申请+ | ||
| DS0.75-IB0509 | 0.75 | 5(4.75-5.25) | 9 | 1 | SIP | 3000VDC | 11.60*6.00*10.16 | IB0509S-W75R3 | 规格书 | 申请+ | ||
| DS0.75-IB1212 | 0.75 | 12(11.4-12.6) | 12 | 1 | SIP | 1500VDC | 11.60*6.00*10.16 | IB1212S-W75R3 | 规格书 | 申请+ | ||
| DS0.75-IB2412 | 0.75 | 24(22.8-25.2) | 12 | 1 | SIP | 1500VDC | 11.60*6.00*10.16 | IB2412S-W75R3 | 规格书 | 申请+ | ||
| DS0.75-IB0512 | 0.75 | 5(4.75-5.25) | 12 | 1 | SIP | 3000VDC | 11.60*6.00*10.16 | IB0512S-W75R3 | 规格书 | 申请+ | ||
| DS0.75-IB1215 | 0.75 | 12(11.4-12.6) | 15 | 1 | SIP | 1500VDC | 11.60*6.00*10.16 | IB1215S-W75R3 | 规格书 | 申请+ | ||
| DS0.75-IB2415 | 0.75 | 24(22.8-25.2) | 15 | 1 | SIP | 1500VDC | 11.60*6.00*10.16 | IB2415S-W75R3 | 规格书 | 申请+ | ||
| DS0.75-IB0515 | 0.75 | 5(4.75-5.25) | 15 | 1 | SIP | 3000VDC | 11.60*6.00*10.16 | IB0515S-W75R3 | 规格书 | 申请+ | ||
| DKS1-IAxxxx | 1 | 5,12,24 | ±5,±9,±12,±15 | 2 | SIP | 1500VDC | 27.50*9.50*12.00 | IA_KS-1WR3 | - | - | 规格书 | 申请+ |
| DKS1-IA0505 | 1 | 5(4.75-5.25) | ±5 | 2 | SIP | 1500VDC | 27.50*9.50*12.00 | IA0505KS-1WR3 | - | - | 规格书 | 申请+ |
| DKS1-IA0512 | 1 | 5(4.75-5.25) | ±12 | 2 | SIP | 1500VDC | 27.50*9.50*12.00 | IA0512KS-1WR3 | - | - | 规格书 | 申请+ |
| DKS1-IA0515 | 1 | 5(4.75-5.25) | ±15 | 2 | SIP | 1500VDC | 27.50*9.50*12.00 | IA0515KS-1WR3 | - | - | 规格书 | 申请+ |
| DKS1-IA1205 | 1 | 12(11.4-12.6) | ±5 | 2 | SIP | 1500VDC | 27.50*9.50*12.00 | IA1205KS-1WR3 | - | - | 规格书 | 申请+ |
| DKS1-IA1209 | 1 | 12(11.4-12.6) | ±9 | 2 | SIP | 1500VDC | 27.50*9.50*12.00 | IA1209KS-1WR3 | - | - | 规格书 | 申请+ |
| DKS1-IA1212 | 1 | 12(11.4-12.6) | ±12 | 2 | SIP | 1500VDC | 27.50*9.50*12.00 | IA1212KS-1WR3 | - | - | 规格书 | 申请+ |
| DKS1-IA2405 | 1 | 24(22.8-25.2) | ±5 | 2 | SIP | 1500VDC | 27.50*9.50*12.00 | IA2405KS-1WR3 | - | - | 规格书 | 申请+ |
| DKS1-IA2412 | 1 | 24(22.8-25.2) | ±12 | 2 | SIP | 1500VDC | 27.50*9.50*12.00 | IA2412KS-1WR3 | - | - | 规格书 | 申请+ |
| DKS1-IA2415 | 1 | 24(22.8-25.2) | ±15 | 2 | SIP | 1500VDC | 27.50*9.50*12.00 | IA2415KS-1WR3 | - | - | 规格书 | 申请+ |
| DLS1-IBxxxx | 1 | 5,12,24 | 3.3,5,9,12,15,24 | 1 | SIP | 1500VDC | 19.65*6.00*10.16 | IB_LS-1WR3 | - | - | 规格书 | 申请+ |
| DLS1-IB0503 | 1 | 5(4.75-5.25) | 3.3 | 1 | SIP | 1500VDC | 19.65*6.00*10.16 | IB0503LS-1WR3 | 规格书 | 申请+ | ||
| DLS1-IB2403 | 1 | 24(22.8-25.2) | 3.3 | 1 | SIP | 1500VDC | 19.65*6.00*10.16 | IB2403LS-1WR3 | 规格书 | 申请+ | ||
| DLS1-IB0505 | 1 | 5(4.75-5.25) | 5 | 1 | SIP | 1500VDC | 19.65*6.00*10.16 | IB0505LS-1WR3 | 规格书 | 申请+ | ||
| DLS1-IB1205 | 1 | 12(11.4-12.6) | 5 | 1 | SIP | 1500VDC | 19.65*6.00*10.16 | IB1205LS-1WR3 | 规格书 | 申请+ | ||
| DLS1-IB2405 | 1 | 24(22.8-25.2) | 5 | 1 | SIP | 1500VDC | 19.65*6.00*10.16 | IB2405LS-1WR3 | 规格书 | 申请+ | ||
| DLS1-IB0509 | 1 | 5(4.75-5.25) | 9 | 1 | SIP | 1500VDC | 19.65*6.00*10.16 | IB0509LS-1WR3 | 规格书 | 申请+ | ||
| DLS1-IB1209 | 1 | 12(11.4-12.6) | 9 | 1 | SIP | 1500VDC | 19.65*6.00*10.16 | IB1209LS-1WR3 | 规格书 | 申请+ | ||
| DLS1-IB2409 | 1 | 24(22.8-25.2) | 9 | 1 | SIP | 1500VDC | 19.65*6.00*10.16 | IB2409LS-1WR3 | 规格书 | 申请+ | ||
| DLS1-IB0512 | 1 | 5(4.75-5.25) | 12 | 1 | SIP | 1500VDC | 19.65*6.00*10.16 | IB0512LS-1WR3 | 规格书 | 申请+ | ||
| DLS1-IB1212 | 1 | 12(11.4-12.6) | 12 | 1 | SIP | 1500VDC | 19.65*6.00*10.16 | IB1212LS-1WR3 | 规格书 | 申请+ | ||
| DLS1-IB2412 | 1 | 24(22.8-25.2) | 12 | 1 | SIP | 1500VDC | 19.65*6.00*10.16 | IB2412LS-1WR3 | 规格书 | 申请+ | ||
| DLS1-IB0515 | 1 | 5(4.75-5.25) | 15 | 1 | SIP | 1500VDC | 19.65*6.00*10.16 | IB0515LS-1WR3 | 规格书 | 申请+ | ||
| DLS1-IB1215 | 1 | 12(11.4-12.6) | 15 | 1 | SIP | 1500VDC | 19.65*6.00*10.16 | IB1215LS-1WR3 | 规格书 | 申请+ | ||
| DLS1-IB2415 | 1 | 24(22.8-25.2) | 15 | 1 | SIP | 1500VDC | 19.65*6.00*10.16 | IB2415LS-1WR3 | 规格书 | 申请+ | ||
| DLS1-IB0524 | 1 | 5(4.75-5.25) | 24 | 1 | SIP | 1500VDC | 19.65*6.00*10.16 | IB0524LS-1WR3 | 规格书 | 申请+ | ||
| DKS1-IExxxx | 1 | 5,24 | ±5,±9,±12,±15 | 2 | SIP | 3000VDC | 27.50*9.50*12.00 | IE_KS-1WR3 | - | - | 规格书 | 申请+ |
| DKS1-IE0505 | 1 | 5(4.75-5.25) | ±5 | 2 | SIP | 3000VDC | 27.50*9.50*12.00 | IE0505KS-1WR3 | - | 规格书 | 申请+ | |
| DKS1-IE0509 | 1 | 5(4.75-5.25) | ±9 | 2 | SIP | 3000VDC | 27.50*9.50*12.00 | IE0509KS-1WR3 | - | - | 规格书 | 申请+ |
| DKS1-IE0512 | 1 | 5(4.75-5.25) | ±12 | 2 | SIP | 3000VDC | 27.50*9.50*12.00 | IE0512KS-1WR3 | - | 规格书 | 申请+ | |
| DKS1-IE2405 | 1 | 24(22.8-25.2) | ±5 | 2 | SIP | 3000VDC | 27.50*9.50*12.00 | IE2405KS-1WR3 | - | - | 规格书 | 申请+ |
| DKS1-IE2409 | 1 | 24(22.8-25.2) | ±9 | 2 | SIP | 3000VDC | 27.50*9.50*12.00 | IE2409KS-1WR3 | - | - | 规格书 | 申请+ |
| DKS1-IE2412 | 1 | 24(22.8-25.2) | ±12 | 2 | SIP | 3000VDC | 27.50*9.50*12.00 | IE2412KS-1WR3 | - | - | 规格书 | 申请+ |
| DKS1-IE2415 | 1 | 24(22.8-25.2) | ±15 | 2 | SIP | 3000VDC | 27.50*9.50*12.00 | IE2415KS-1WR3 | - | - | 规格书 | 申请+ |
| DS1-IF0505G | 1 | 5 | 5 | 1 | SIP | 3000VDC | 19.65*6.00*10.16 | IF0505S-1WR3G | - | - | 规格书 | 申请+ |
| DS1-IF0505G | 1 | 5(4.75-5.25) | 5 | 1 | SIP | 3000VDC | 19.65*6.00*10.16 | IF0505S-1WR3G | - | 规格书 | 申请+ | |
| DS1-IF_ | 1 | 5,12,15,24 | 3.3,5,9,12,15,24 | 1 | SIP | 3000VDC | 19.65*6.00*10.16 | IF_S-1WR3 | - | - | 规格书 | 申请+ |
| DS1-IF0503 | 1 | 5(4.75-5.25) | 3.3 | 1 | SIP | 3000VDC | 19.65*6.00*10.16 | IF0503S-1WR3 | 规格书 | 申请+ | ||
| DS1-IF2403 | 1 | 24(22.8-25.2) | 3.3 | 1 | SIP | 3000VDC | 19.65*6.00*10.16 | IF2403S-1WR3 | 规格书 | 申请+ | ||
| DS1-IF0505 | 1 | 5(4.75-5.25) | 5 | 1 | SIP | 3000VDC | 19.65*6.00*10.16 | IF0505S-1WR3 | 规格书 | 申请+ | ||
| DS1-IF1205 | 1 | 12(11.4-12.6) | 5 | 1 | SIP | 3000VDC | 19.65*6.00*10.16 | IF1205S-1WR3 | 规格书 | 申请+ | ||
| DS1-IF2405 | 1 | 24(22.8-25.2) | 5 | 1 | SIP | 3000VDC | 19.65*6.00*10.16 | IF2405S-1WR3 | 规格书 | 申请+ | ||
| DS1-IF0509 | 1 | 5(4.75-5.25) | 9 | 1 | SIP | 3000VDC | 19.65*6.00*10.16 | IF0509S-1WR3 | 规格书 | 申请+ | ||
| DS1-IF1209 | 1 | 12(11.4-12.6) | 9 | 1 | SIP | 3000VDC | 19.65*6.00*10.16 | IF1209S-1WR3 | 规格书 | 申请+ | ||
| DS1-IF2409 | 1 | 24(22.8-25.2) | 9 | 1 | SIP | 3000VDC | 19.65*6.00*10.16 | IF2409S-1WR3 | 规格书 | 申请+ | ||
| DS1-IF0512 | 1 | 5(4.75-5.25) | 12 | 1 | SIP | 3000VDC | 19.65*6.00*10.16 | IF0512S-1WR3 | 规格书 | 申请+ | ||
| DS1-IF1212 | 1 | 12(11.4-12.6) | 12 | 1 | SIP | 3000VDC | 19.65*6.00*10.16 | IF1212S-1WR3 | 规格书 | 申请+ | ||
| DS1-IF1505 | 1 | 15(14.25-15.75) | 12 | 1 | SIP | 3000VDC | 19.65*6.00*10.16 | IF1505S-1WR3 | 规格书 | 申请+ | ||
| DS1-IF2412 | 1 | 24(22.8-25.2) | 12 | 1 | SIP | 3000VDC | 19.65*6.00*10.16 | IF2412S-1WR3 | 规格书 | 申请+ | ||
| DS1-IF0515 | 1 | 5(4.75-5.25) | 15 | 1 | SIP | 3000VDC | 19.65*6.00*10.16 | IF0515S-1WR3 | 规格书 | 申请+ | ||
| DS1-IF1215 | 1 | 12(11.4-12.6) | 15 | 1 | SIP | 3000VDC | 19.65*6.00*10.16 | IF1215S-1WR3 | 规格书 | 申请+ | ||
| DS1-IF1515 | 1 | 15(14.25-15.75) | 15 | 1 | SIP | 3000VDC | 19.65*6.00*10.16 | IF1515S-1WR3 | 规格书 | 申请+ | ||
| DS1-IF2415 | 1 | 24(22.8-25.2) | 15 | 1 | SIP | 3000VDC | 19.65*6.00*10.16 | IF2415S-1WR3 | 规格书 | 申请+ | ||
| DS1-IF0524 | 1 | 5(4.75-5.25) | 24 | 1 | SIP | 3000VDC | 19.65*6.00*10.16 | IF0524S-1WR3 | 规格书 | 申请+ | ||
| DCS1-IH05xx | 1 | 5(4.75-5.25) | 3.3,5,9,12,15 | 1 | SIP | 5000VAC or 7000VDC | 27.40*9.50*12.00 | IH05_CS-1WR3 | - | - | 规格书 | 申请+ |
| DCS1-IH0503 | 1 | 5(4.75-5.25) | 3.3 | 1 | SIP | 5000VAC or 7000VDC | 27.40*9.50*12.00 | IH05_CS-1WR3 | - | 规格书 | 申请+ | |
| DCS1-IH0505 | 1 | 5(4.75-5.25) | 5 | 1 | SIP | 5000VAC or 7000VDC | 27.40*9.50*12.00 | IH05_CS-1WR3 | - | 规格书 | 申请+ | |
| DCS1-IH0509 | 1 | 5(4.75-5.25) | 9 | 1 | SIP | 5000VAC or 7000VDC | 27.40*9.50*12.00 | IH05_CS-1WR3 | - | 规格书 | 申请+ | |
| DCS1-IH0512 | 1 | 5(4.75-5.25) | 12 | 1 | SIP | 5000VAC or 7000VDC | 27.40*9.50*12.00 | IH05_CS-1WR3 | - | 规格书 | 申请+ | |
| DCS1-IH0515 | 1 | 5(4.75-5.25) | 15 | 1 | SIP | 5000VAC or 7000VDC | 27.40*9.50*12.00 | IH05_CS-1WR3 | - | 规格书 | 申请+ |
* 上方产品参数仅供参考，详细技术参数请以技术规格书为准
